Automatic License Plate Detection & Recognition using deep learning
Automatic License Plate Detection & Recognition using deep learning

Introduction

The massive integration of information technologies, under different aspects of the modern world, has led to the treatment of vehicles as conceptual resources in information systems. Since an autonomous information system has no meaning without any data, there is a need to reform vehicle information between reality and the information system.This can be achieved by human agents or by special intelligent equipment that will allow identification of vehicles by their registration plates in real environments. Among intelligent equipment, mention is made of the system of detection and recognition of the number plates of vehicles.The system of vehicle number plate detection and recognition is used to detect the plates then make the recognition of the plate that is to extract the text from an image and all that thanks to the calculation modules that use location algorithms, segmentation plate and character recognition.The detection and reading of license plates is a kind of intelligent system and it is considerable because of the potential applications in several sectors which are quoted:

This system is used for the detection of stolen and searched vehicles. The detected plates are compared to those of the reported vehicles.

Our project will be divised into 3 steps :

Step1 : Licence plate detection

In order to detect licence we will use Yolo ( You Only Look One ) deep learning object detection architecture based on convolution neural networks.

This architecture was introduced by Joseph Redmon , Ali Farhadi, Ross Girshick and Santosh Divvala first version in 2015 and later version 2 and 3.

Yolo v1 : Paper link.

Yolo v2 : Paper link.

Yolo v3 : Paper link.

Yolo is a single network trained end to end to perform a regression task predicting both object bounding box and object class.

This network is extremely fast, it processes images in real-time at 45 frames per second. A smaller version of the network, Fast YOLO, processes an astounding 155 frames per second.

Implementing YOLO V3:

First, we prepared a dataset composed of 700 images of cars that contains Tunisian licence plate, for each image, we make an xml file ( Changed after that to text file that contains coordinates compatible with Darknet config file input. Darknet : project used to retrain YOLO pretrained models) using a desktop application called LabelImg.

# First download Darknet project
$ git clone https://github.com/pjreddie/darknet.git
# in "darknet/Makefile" put affect 1 to OpenCV, CUDNN and GPU if you # want to train with you GPU then time thos two commands
$ cd darknet
$ make
# Load convert.py to change labels (xml files) into the appropriate # format that darknet understand and past it under darknet/
https://github.com/GuiltyNeuron/ANPR
# Unzip the dataset
$ unzip dataset.zip
# Create two folders, one for the images and the other for labels
$ mkdir darknet/images
$ mkdir darknet/labels
# Convert labels format and create files with location of images
# for the test and the training
$ python convert.py
# Create a folder under darknet/ that will contain your data
$ mkdir darknet/custom
# Move files train.txt and test.txt that contains data path to
# custom folder
$ mv train.txt custom/
$ mv test.txt custom/
# Create file to put licence plate class name "LP"
$ touch darknet/custom/classes.names
$ echo LP > classes.names
# Create Backup folder to save weights
$ mkdir custom/weights
# Create a file contains information about data and cfg
# files locations
$ touch darknet/custom/darknet.data
# in darknet/custom/darknet.data file paste those informations
classes = 1
train = custom/train.txt
valid = custom/test.txt
names = custom/classes.names
backup = custom/weights/
# Copy and paste yolo config file in "darknet/custom"
$ cp darknet/cfg/yolov3.cfg darknet/custom
# Open yolov3.cfg and change :
# " filters=(classes + 5)*3" just the ones before "Yolo"
# in our case classes=1, so filters=18
# change classes=... to classes=1
# Download pretrained model
$ wget https://pjreddie.com/media/files/darknet53.conv.74 -O ~/darknet/darknet53.conv.74
# Let's train our model !!!!!!!!!!!!!!!!!!!!!
$ ./darknet detector train custom/darknet.data custom/yolov3.cfg darknet53.conv.74

After finishing the training, to detectect u liscence plate from an image, choose the latest model from darknet/custom/weights , and put its path or name in file object_detection_yolo.py, also we will use yolov3.cfg file, just in this file put # before training so we desable training then run :

python object-detection_yolo.py --image= image.jpg



Licence plate segmentation

Now we have to segment our plate number. The input is the image of the plate, we will have to be able to extract the unicharacter images. The result of this step, being used as input to the recognition phase, is of great importance. In a system of automatic reading of number plates.

Segmentation is one of the most important processes for the automatic identification of license plates, because any other step is based on it. If the segmentation fails, recognition phase will not be correct.To ensure proper segmentation, preliminary processing will have to be performed.

The histogram of pixel projection consists of finding the upper and lower limits, left and right of each character. We perform a horizontal projection to find the top and bottom positions of the characters. The value of a group of histograms is the sum of the white pixels along a particular line in the horizontal direction.

Step3 : Licence plate recognition



The recognition phase is the last step in the development of the automatic license plate reader system. Thus, it closes all the processes passing by the acquisition of the image, followed by the location of the plate until the segmentation. The recognition must make from the images characters obtained at the end of the segmentation phase. The learning model that will be used for this recognition must be able to read an image and to render the corresponding character.

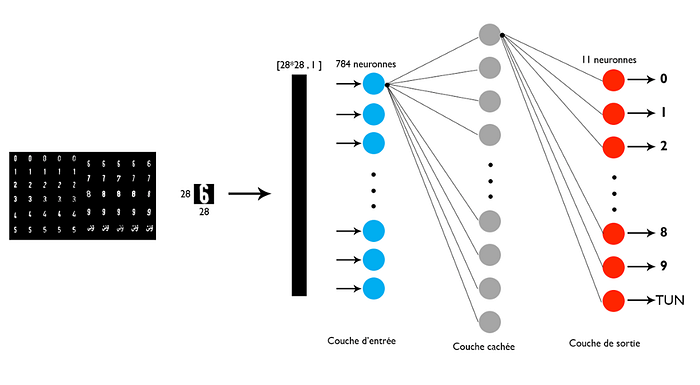

Then, we made some researches based on scientific articles that compare the multilayer perceptron (MLP) and the classifier K nearest neighbors (KNN). And as a result we have found that: performance is increased if the number of hidden layer neurons is also increased when using the MLP classifier and if the nearest neighbor number is also increased when using the KNN. the ability to adjust the performance of the k-NN classifier is very limited here. But an adjustable number of hidden layers and adjustable MLP connection weights provides a greater opportunity to refine the decision regions. So as a result, we will choose the multilayer perceptron for this phase.

Conclusion We introduce YOLO, a unified model for object detection. Our model is simple to construct and can be trained directly on full images. Unlike classifier-based approaches, YOLO is trained on a loss function that directly corresponds to detection performance and the entire model is trained jointly. Fast YOLO is the fastest general-purpose object detector in the literature and YOLO pushes the state-of-the-art in real-time object detection. YOLO also generalizes well to new domains making it ideal for applications that rely on fast, robust object detection.
