The Smart Alarm Mat is a creative alarm system built with an Arduino Nano, designed to force you out of bed! Instead of just pressing a snooze button, you must stand on the mat for a few seconds to stop the alarm. It uses a pressure sensor, RTC module, LCD display, and a buzzer to wake you up and ensure you’re really out of bed. Ideal for heavy sleepers or anyone trying to build better morning habits.
Price : 4000
.svg)
The Smart Alarm Mat is a creative alarm system built with an Arduino Nano, designed to force you out of bed! Instead of just pressing a snooze button, you must stand on the mat for a few seconds to stop the alarm. It uses a pressure sensor, RTC module, LCD display, and a buzzer to wake you up and ensure you’re really out of bed. Ideal for heavy sleepers or anyone trying to build better morning habits.
| Component | Quantity | Description |
|---|---|---|
| Arduino Nano | 1 | Main microcontroller |
| DS3231 RTC Module | 1 | Real-Time Clock for accurate timekeeping |
| 16x2 I2C LCD Display | 1 | Displays time, date, and alarm status |
| Buzzer | 1 | Sounds the alarm |
| Pressure Sensor / Mat | 1 | Detects user standing on the mat |
| EEPROM (internal) | - | Stores alarm time settings |
| Push Button (optional) | 1 | For testing or alternative alarm stop method |
| Jumper Wires | As needed | Electrical connections |
| Breadboard / PCB | 1 | Assembling and testing the circuit |
| Resistors (if needed) | As needed | For sensor stability |
| Power Supply (USB/adapter) | 1 | Powers the Arduino Nano |

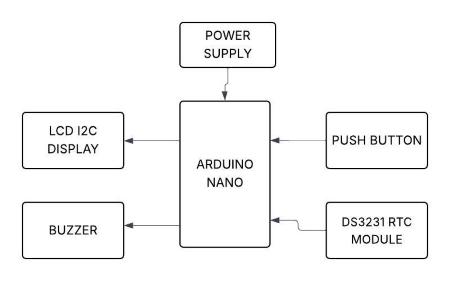

Initialization:
Arduino sets up the RTC, LCD, buzzer pin, and button pin. It reads the alarm time from EEPROM memory (non-volatile storage).
Display time:
Every loop, the Arduino reads the current time from RTC and shows the day, date, and time on the LCD.
Check alarm:
When current time matches the saved alarm time and the alarm hasn’t rung yet today, the buzzer starts sounding, and the LCD shows “Alarm!”.
Stop alarm:
If the button is pressed, the alarm enters a "stopping" mode for 10 seconds, then the buzzer stops, and the alarm is disabled until the next day.
Reset daily alarm:
At midnight, the alarm status resets so it can ring again the next day.
