This project is a cabin environment monitoring system that measures temperature, humidity, pressure, and displays real-time date and time using sensors and an LCD. It includes Bluetooth connectivity to receive voice commands from a paired device, allowing users to control and interact with the system wirelessly through voice, which enhances convenience and hands-free operation.
Price : 3500
.svg)

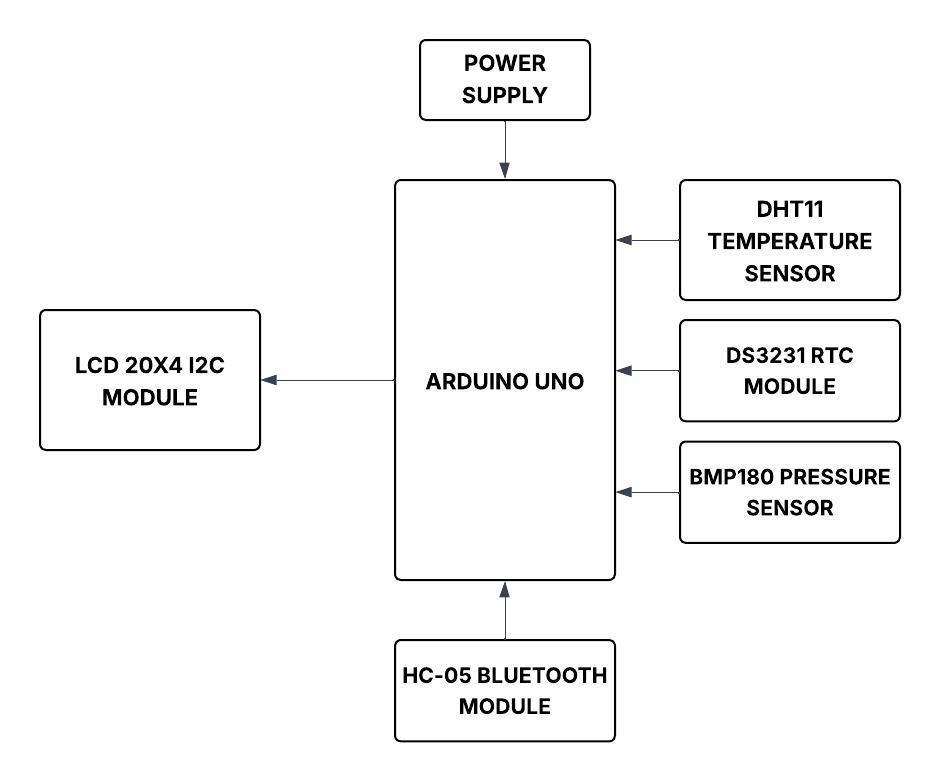

This cabin environment monitoring system integrates multiple sensors, including DHT11 for temperature and humidity, BMP180 for atmospheric pressure, and a real-time clock (RTC) module for accurate date and time display. The data is shown on a 20x4 LCD for easy monitoring. Additionally, the system features Bluetooth connectivity that enables voice control via a paired device, allowing users to interact with the system remotely and hands-free. This makes it ideal for maintaining optimal cabin conditions and improving user convenience.
| Component | Specification / Model | Quantity |
|---|---|---|
| Arduino Uno / Mega | Microcontroller Board | 1 |
| LCD Display | 20x4 I2C LCD (Address 0x27) | 1 |
| RTC Module | DS3231 Real-Time Clock | 1 |
| DHT Sensor | DHT11 (Temp & Humidity) | 1 |
| Barometric Pressure Sensor | BMP180 / BMP085 | 1 |
| Bluetooth Module | HC-05 | 1 |
| Jumper Wires | Male-to-Male/Male-to-Female | As needed |
| Breadboard | For circuit assembly | 1 |
| Power Supply | 9V Battery / USB | 1 |
| Resistors (if required) | 10kΩ (for DHT pull-up) | 1 |
The voice-controlled environmental monitoring system continuously tracks real-time temperature, humidity, atmospheric pressure, and displays the current date and time on an I2C LCD. It uses a DS3231 RTC module to keep precise time, a DHT11 sensor to measure ambient temperature and humidity, and a BMP180 sensor to detect atmospheric pressure. The data is updated every second and displayed clearly on the LCD across multiple lines. Additionally, an HC-05 Bluetooth module allows users to send voice-based text commands via a mobile app, which are then received and shown on the LCD screen, enabling basic interaction or alerts. This setup ensures accurate environmental monitoring with the convenience of wireless communication.
IMAGES USED ARE FOR SAMPLE PURPOSES ONLY!!!!!
